Vixen Encoder für AXJ parallaktische Montierung

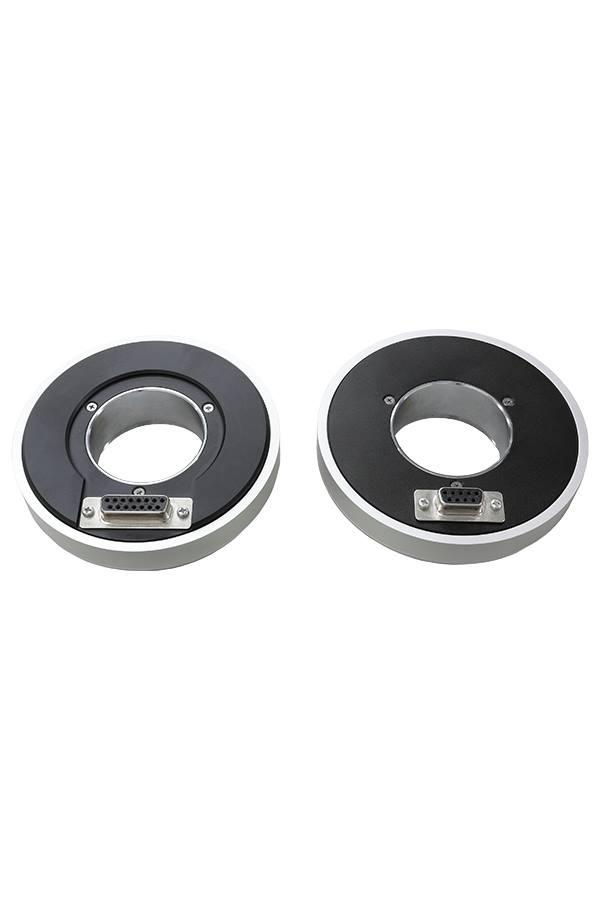

AXJ Encoder (Art.37913)   FEATURESHigh precision encoder to dramatically enhance performance of the AXJ equatorial mount.■　The encoder permits release of clamp while link to the cordinate of the STAR BOOK TEN controller is maintained, whichis very useful to introduce celestial objects by moving optical tube by hands.■　High precision trackingThe AXJ encoder monitors tracking of the mount with resolution of 0.1 arc sec (DEC). Even very small periodic motion of the high precision AXJ mount will be detected for further accurate tracking.■ Built-in design. The encoder is designed to be built in the equatorial mount for smooth handling and storage.   In order for AXJ EQ Mount to function with AXJ Encoder, programme update for StarBook-TEN Controller needs to be updated with the latest programme available from Vixen Co.,Ltd. Product Code              Art.#37913            R.A Encoder    R.A. Encoder         Sensor               Reflective Laser Sensor (*1)            Scale              Glass reflective Rotary Scale            Resolution              0.1 arc sec.            Periodic Error (*2)              < 0.5 sec. rms (typical)            Power             DC5V 0.2V, supplied from AXJ Mount            Terminal             D-SUB 15PIN Female            Operating Temperature              0 to 40 degree celsius            Size              O.D. 99.5mm x 27mm            Weight   350g            Note *1: Class 1 Laser Product(IEC60825-1-2014)   *2: Tracking Error at sidereal rate by mounted in AXJ EQ Mount  DEC Encoder  DEC Encoder           Sensor     Reflective Optical Sensor         Scale      PET Reflective Rotary Scale          Resolution     0.2 arc sec.            Periodic Error (*2)       --           Power             DC5V 0.1V, supplied from AXJ Mount            Terminal             D-SUB 9 PIN Female            Operating Temperature              0 to 40 degree celsius            Size              O.D. 99.5mm x 25mm            Weight   320g
