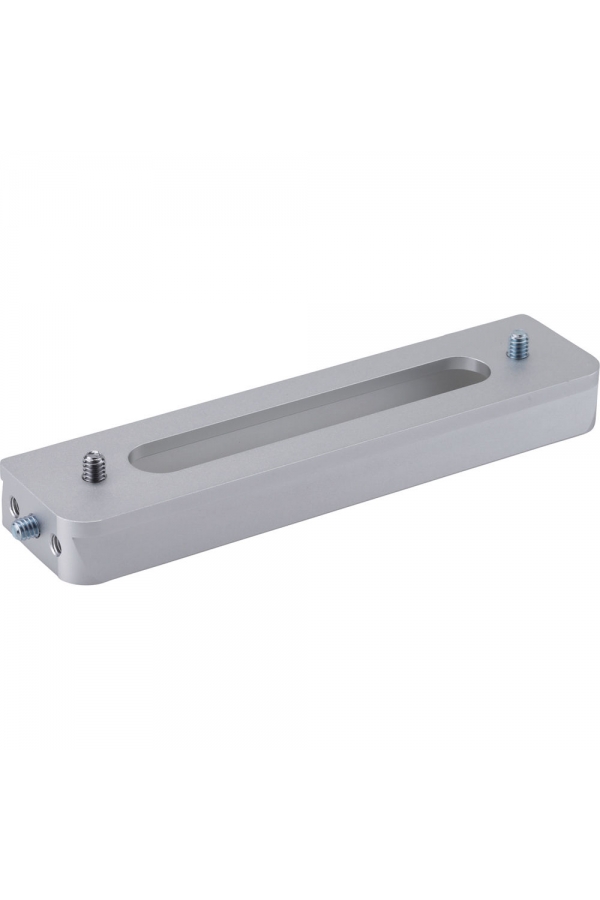

Vixen Telescope Dovetail Slide Bar PG

Attaching a DSLR camera or other instruments to the AP mount The dovetail slide bar PG is used to attach a DSLR camera or other instruments with a 1/4” screw to the AP mount. It can be mounted on all the Vixen mount heads with the Vixen-style dovetail mounting unit (SX2, SXD2, and PORTA II). The elongated sight slot on the dovetail slide bar PG avoids disturbing the field of view of the polar scope when it is used. Specifications Dovetail Slide Bar PG Width of the dovetail slide bar Vixen standard (44mm), with a sighting slot for the polar scope Numbers of 1/4” screws for attachment 4 pieces Numbers of M6 screw sockets 4 pieces Size 182mm x 44mm x 20mm Weight 200g
