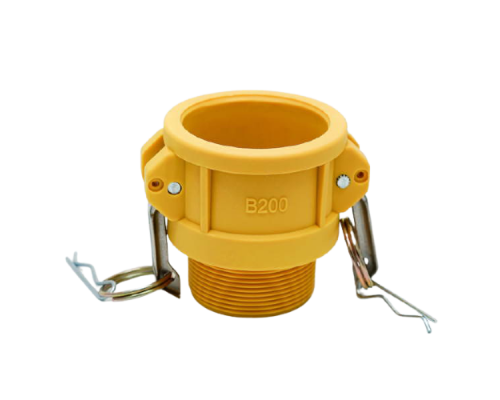

Nyglass Camlock Fitting (Type B) – BSP Thread

Description Nyglass Camlock The coupling is connected by simply opening the coupler arms and inserting the adapter into the coupler. The cam arms are then closed under normal hand pressure to complete the joint. Reliable quick connect coupling for use on hose, pipe, tubing and tanks conveying a wide variety of liquids, dry bulk materials, oil, powder, cosmetics, foodstuffs, offshore, pumps, adhesives, dyes, pharmaceuticals, pellets, some hydrocarbon, chemicals and many more. Note: Not to be used for compressed air and steam application. Standard Buna-N seal installed Nyglass combines the lightweight strength of fibreglass with the elasticity of nylon CAMLOCK TYPES TYPE DESCRIPTION Type A Male Adaptor – Female BSP Type B Female Coupler – Male BSP Type C Female Coupler – Hose Tail Type D Female Coupler – Female BSP Type E Male Adaptor – Hose Tail Type F Male Adaptor – Male BSP Type DC Dust Cap Female End Coupler Type DP Dust Plug Male End Adaptor Camlock Type B – Female Coupler x Male BSP – Specifications Part Number Coupling Size (In) Coupling Size (mm) A (mm) B (mm) E (mm) G (mm) Thread Type WEIGHT (kg) 6204.02.20 3/4″ 19 14 53 32 53 BSPT 0.08 6204.02.25 1″ 25 24 62 40 60 BSPT 0.11 6204.02.32 1. 1/4″ 32 28 66 48 78 BSPT 0.17 6204.02.40 1. 1/2″ 38 35 71 49 85 BSPT 0.19 6204.02.50 2″ 51 51 77 54 96 BSPT 0.23 6204.02.80 3″ 76 72 92 60 127 BSPT 0.38
